View detailsDN15 / DN20 / DN25
Engineering Plastic Ultrasonic Water Meter
A compact IP68 ultrasonic water meter platform covering DN15 to DN25 with multiple communication options and installation lengths.
Send Inquiry
TECHNICAL DATA
Performance specifications
- Permanent flow Q3
- 2.5 / 2.5–4.0 / 6.3–10.0 m³/h
- Dynamic range
- R250 / R400 / R500 / R800
- Meter length
- 110–260 mm
- Maximum pressure
- 1.6 MPa
- Protection class
- IP68
- Medium temperature
- 0.1–50 °C (T50)
- Ambient temperature
- −25–55 °C
- Accuracy
- ±5% (Q1≤Q<Q2); ±2% (Q2≤Q≤Q4)
- Communication
- LoRaWAN Class A / NB-IoT / M-Bus / WM-Bus / Pulse
- Connection
- G3/4B / G1B / G1 1/4B

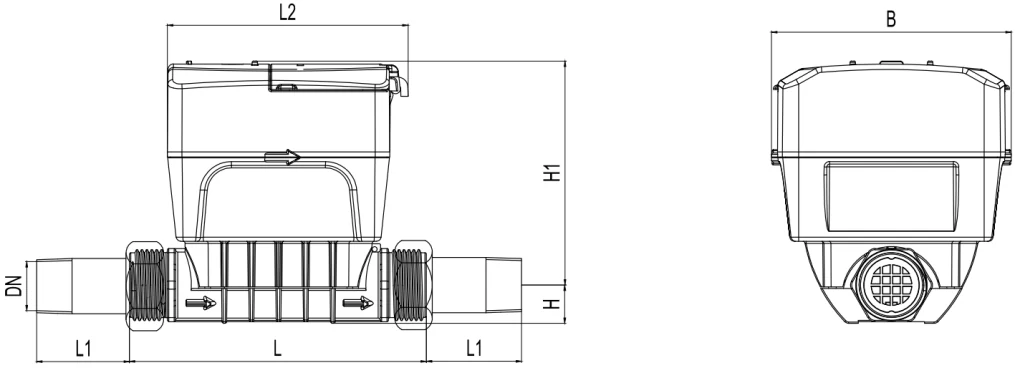

DRAWINGS
Dimensions & installation
